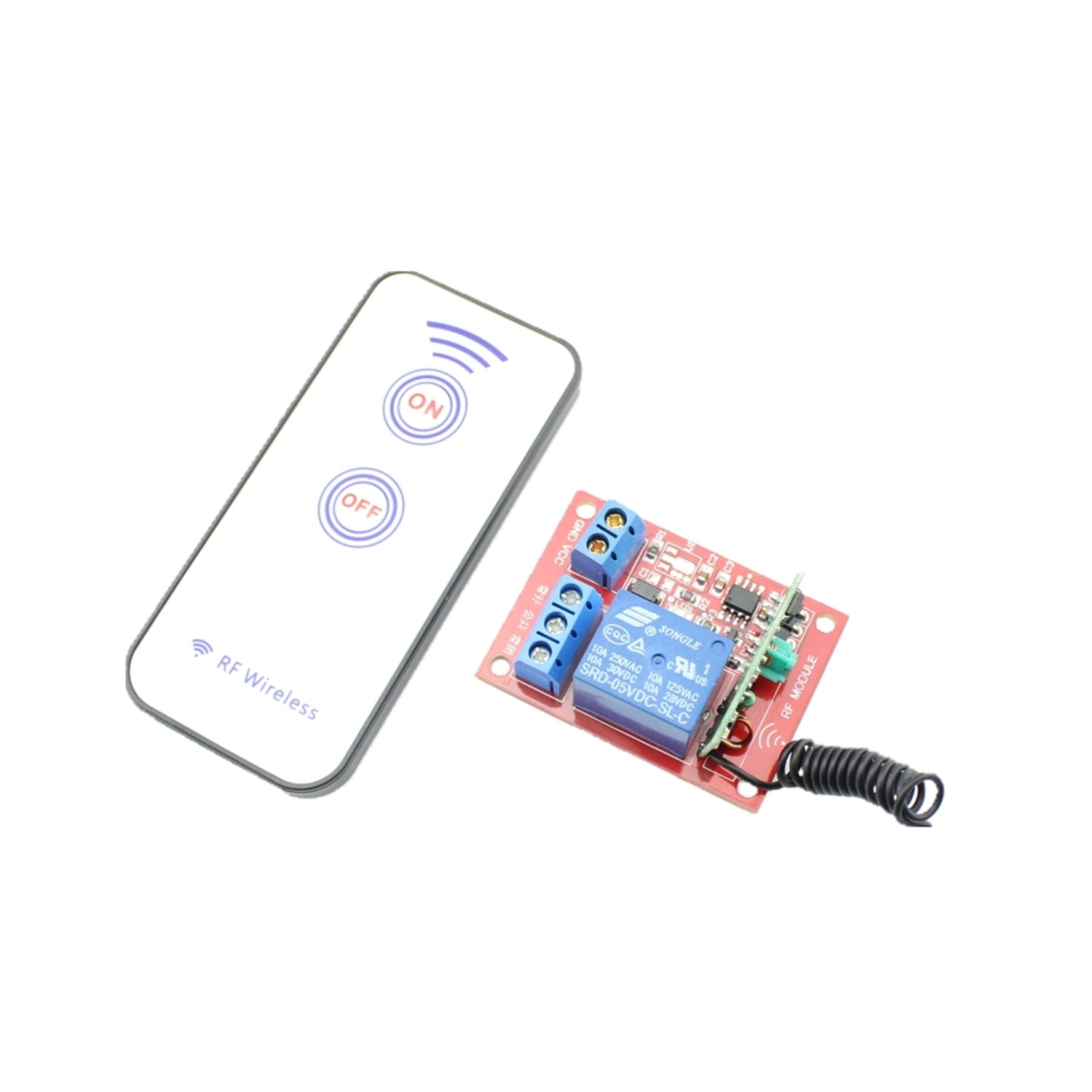

This 1 channel latching relay module whose output is passive output, can be controlled by its 2-button RF wireless controller, when the module is powered on. The module must be equipped with a suitable remote control, it also can drive most of household electrical appliances.
Features
- Able to control various appliances and other equipments with large current
- Equipped with high-current relay
- Standard interface that can be controlled directly by microcontroller
- LED indication for Relay output status
Specification
- Working Voltage: DC 5-5.5V
- Working current: about 70mA
- Quiescent current: about 6mA
- MAX Load Voltage:10A 250VAC or 10A 30VDC
- Module size: 48 x 35 x 20mm
- Module type: 433m RF wireless receiving
- Remote control distance: 15-30 meters
- Work status: Self-locking
- The work instructions LED: LED1(power), LED2(relay)
Package list
- 1 Channel RF Remote Control Module DC 5V x1
- 2 key RF wireless remote controller x1
