Potter PAD100-PSSA Single Action Addressable Pull Station

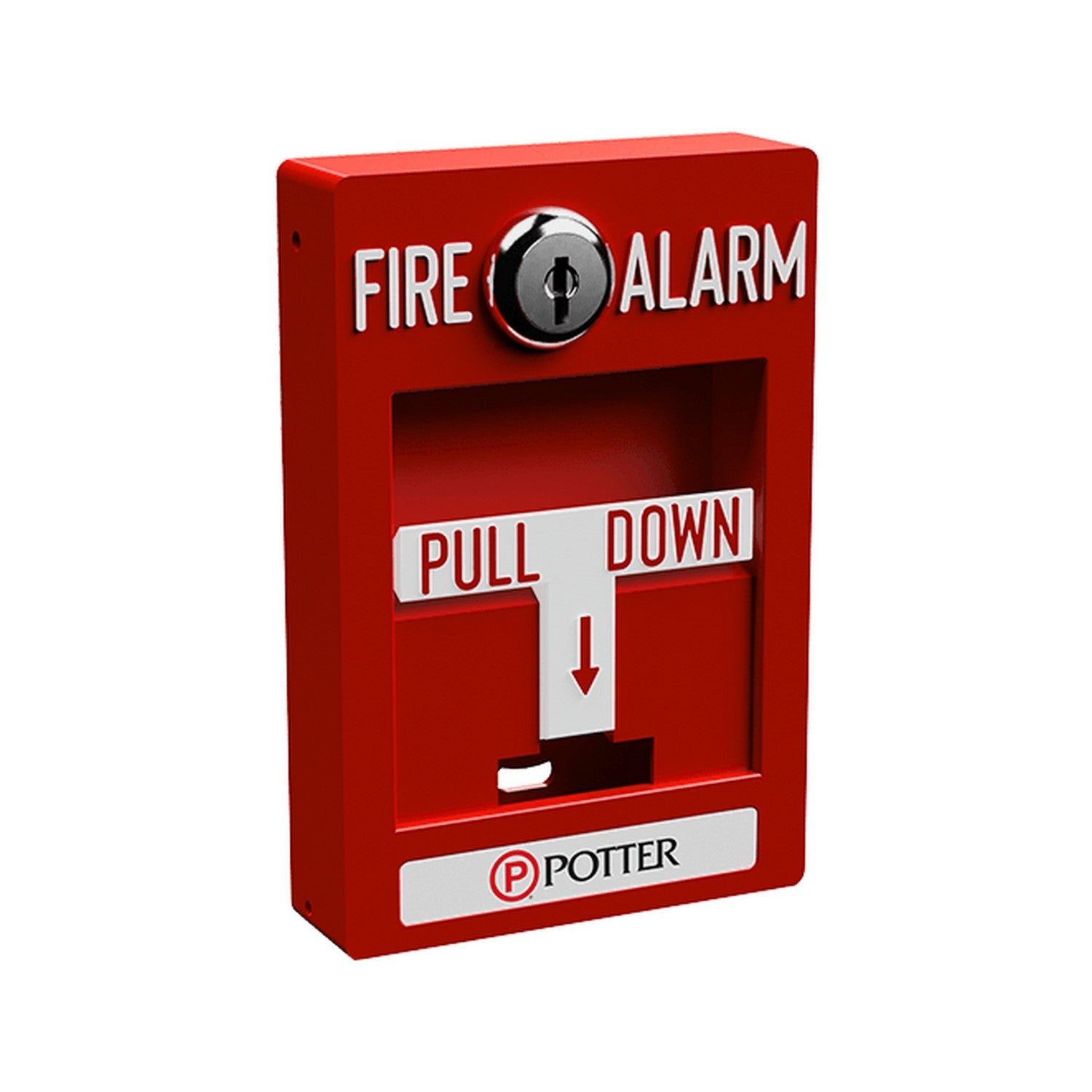

The PAD100-PSSA (Single Action) is activated by simply pulling the white “T” bar handle down. The PAD100-PSDA (Dual Action) is activated by lifting the front cover and then pulling the white “T” bar handle down. Once activated, the “T” bar cannot be reset without opening the front cover. Opening the front cover will also activate the pull station. To reset the PAD100-PS Series, use the Potter WS-93 key to unlock and open the front cover. Once the cover is open, push the “T” bar back into the normal position and re-secure the front cover.

Key Features

• Single Action version
• Durable die-cast construction
• Reset key matches the fire alarm control panels
• Compatible with IPA Series panels
• SLC Class A, Class X & Class B
• Product includes a 5-year warranty

Technical Specifications

Gang Type
Single Gang
Pull Station Type
Single Action
Environmental Conditions
Maximum Operating Temperature
120 Degrees F (48.9 Degrees C)
Maximum Operating Temperature (Degrees F)
120
Minimum Operating Temperature
32 Degrees F (0 Degrees C)
Minimum Operating Temperature (Degrees F)
32
Physical Characteristics
Application/Usage
Fire Alarm, Indoor
Depth
1.8”
Depth (mm)
44.45
Height
4.8”
Height (mm)
120.65
Product Color
Red
Width
3.3”
Width (mm)
82.55
Power Description
Input Voltage
24V DC
Input Voltage (V DC)
24
Product Information
Print/Message
Pull Down
Warranty
Limited Warranty
5 Year
Miscellaneous
Certifications & Standards
UL
Compatibility
Potter IPA Series Addressable Fire Alarm Control Panels
Country of Origin
United States
Features

Durable, Key Reset, Surface Mount
