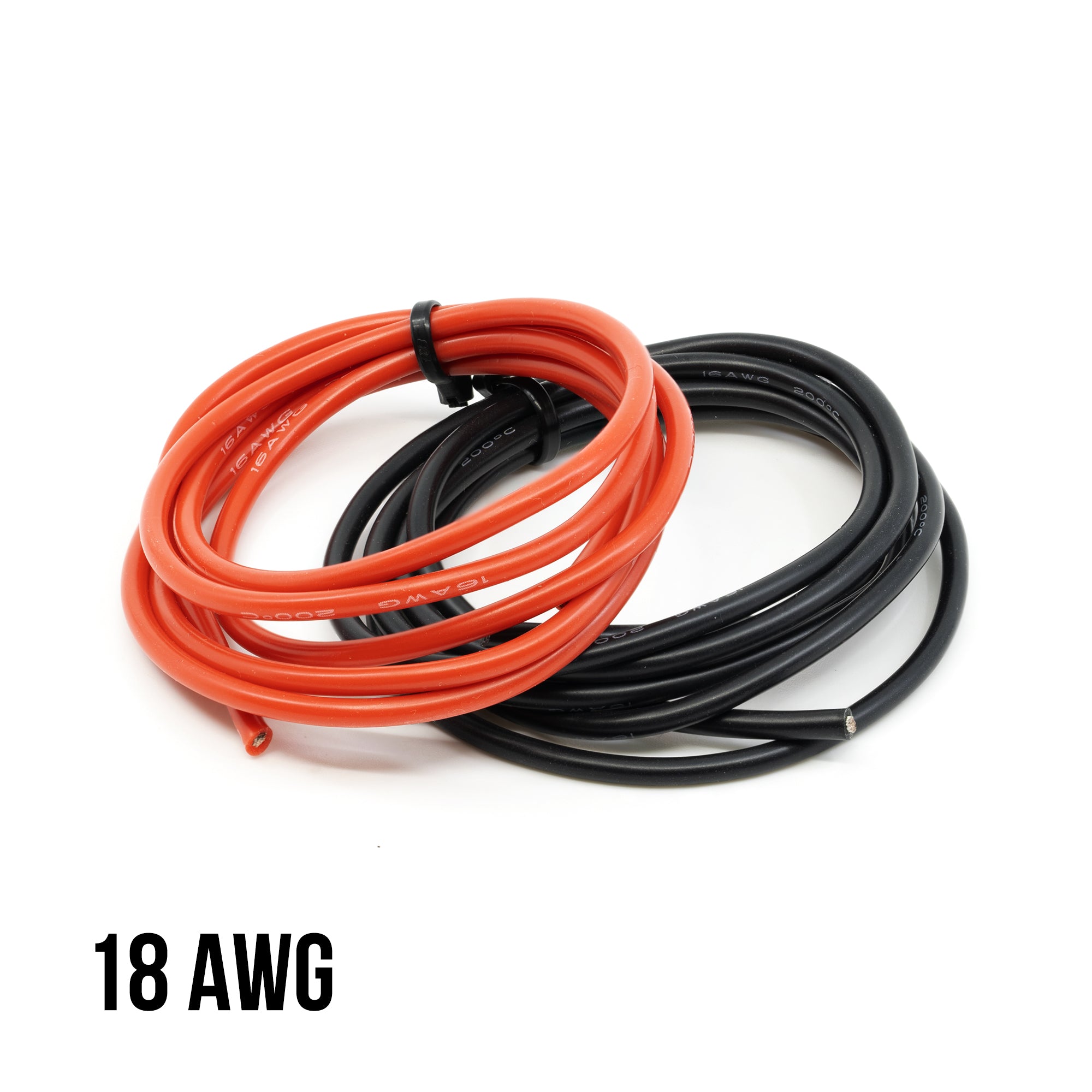

Silicone Soft Heat Proof Wire 1 Metre 18AWG Various Colours Clearance Inexpensive

12 AWG (for XT60 pigtail, high performance 5″ racing quad)

14 AWG (for XT60 pigtail, medium power 5″ racing quad)

16 AWG (for XT30 and XT60 pigtail, low power up to 80A burst)

18 AWG (for XT30, ESC power, and motor wire extension, up to 45A burst)

20 AWG (For Motor Wire Extension)

Connectors Rating General Guide

Like wires, connectors also have current limitation, so you should choose carefully based on the application to avoid it becoming the “bottleneck” of your system. Here are the guideline – continuous and burst current.

• JST connector – 5A (10A)
• 2mm bullet connectors – 20A (40A)
• XT30 – 30A (60A)
• XT60 connectors – 60A (120A)

The wire we stock has the following properties

• Silicon & Flexible
• Heat Proof (200 degrees maximum rating except for signal wires)
• Tinned Copper structure
