Ushio 1000667 HPL-375/115X JS115V-375WX 2000 Hour High Performance Halogen Lamp Pictures Cheap Pice

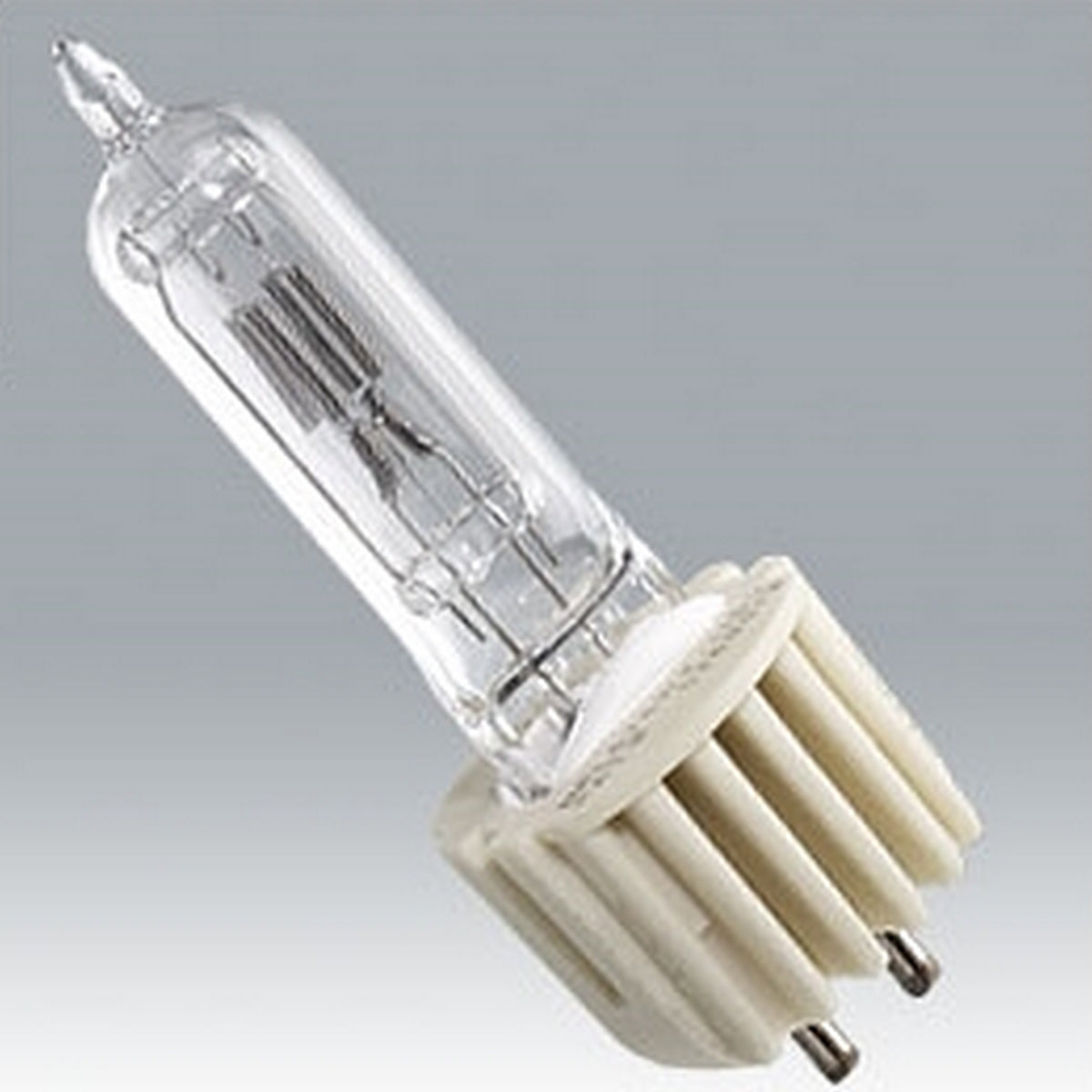

Ushio 1000667 HPL-375/115X+ JS115V-375WX 2000 Hour High Performance Halogen Lamp

USHIO’s high performance lamp HPL, has been redesigned to be the most powerful HPL ever. It’s ultra-compact filament geometry now improves the optical efficiency of your ETC Source Four™ fixtures to produce up to 20% more fixture lumens. That’s up to 20% more light from the same fixture as compared to the old lamp design. Previously, design of the HPL lamp was limited to larger filament dimensions than USHIO’s HPL+ geometry. Working in close cooperation with ETC’s engineers, Ushio has matched the “innovation” of the Source Four™ fixture by making a more compact (6.0mm x 9.5mm) filament profile. This improvement partnered with the optics of the Source Four™, generate ultimate axial and radial light distribution and optical system efficiency.
The Source Four’s™ precise optics demand precisely engineered lamps. USHIO has responded to the Source Four’s™ need for a reduced geometry filament, and has done so with quality manufacturing standards. Performance you can measure, quality you can count on, variety of lamp types, and innovative design for your theatrical needs.

Key Features

• New ceramic heat sink base maintains its resistance to electric conductivity over the life of the lamp
• Unique compact four & six filament design for more efficient light collection
• Standard and long life versions provide increased light output
• USHIO has the largest selection of voltages and wattages

Technical Specifications

USHIO CODE : 1000667
LAMP SERIES : HPL
PRODUCT ID / ANSI CODE : HPL-375/115X+
DESCRIPTION : HPL-375/115X+, JS115V-375WX, 1000 Hour
DESCRIPTION 2 : 375W 115V
ITEM MARKET : Stage, Studio & TV
ITEM TYPE : Halogen
PREFIX : HPL
BASE : HT/SNK
VOLTAGE : 115
WATTAGE : 375
BURN POSITION : ANY
BULB SHAPE : T6
BULB FINISH : CLEAR
COLOR TEMP (K) : 3050
EFFICACY (LM/W) : 21.3
FILAMENT : 4-C8
FRONT GLASS COVER : NO
INITIAL LUMENS (LM) : 8000
LUMINOUS FLUX (LM) : 8000
LIFE (HR) : 1000
DIAMETER (MM) : 18.35
MOL (MM) : 104
LIGHT CENTER LENGTH (MM) : 60.3
