Whirlwind HBL2811 4-Pole 5-Wire 30A 120/208VAC Y-Type Twist-Lock L21-30R Grounding Plug For Sale Cheap Pice

Whirlwind HBL2811 4-Pole 5-Wire 30A 120/208VAC Y-Type Twist-Lock L21-30R Grounding Plug

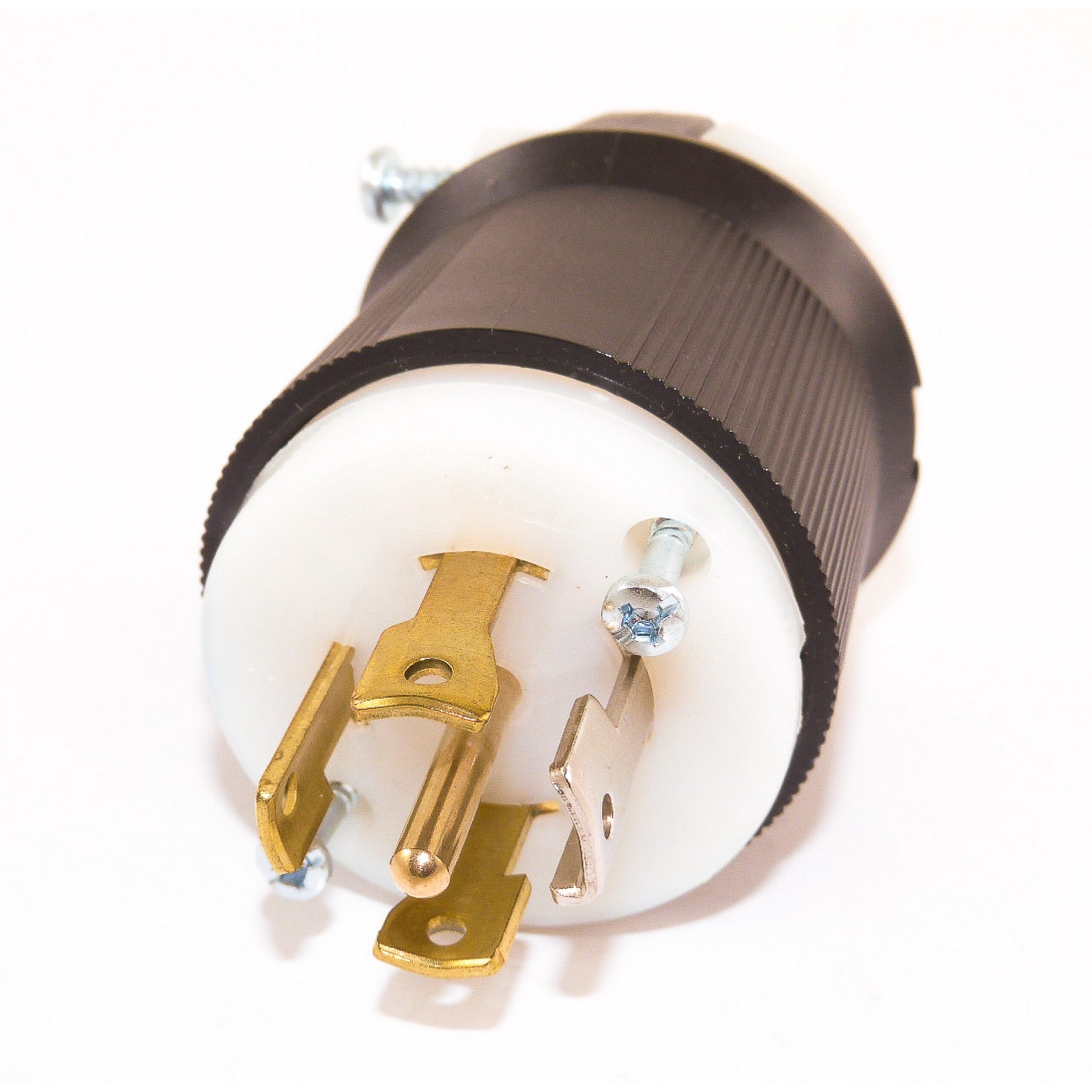

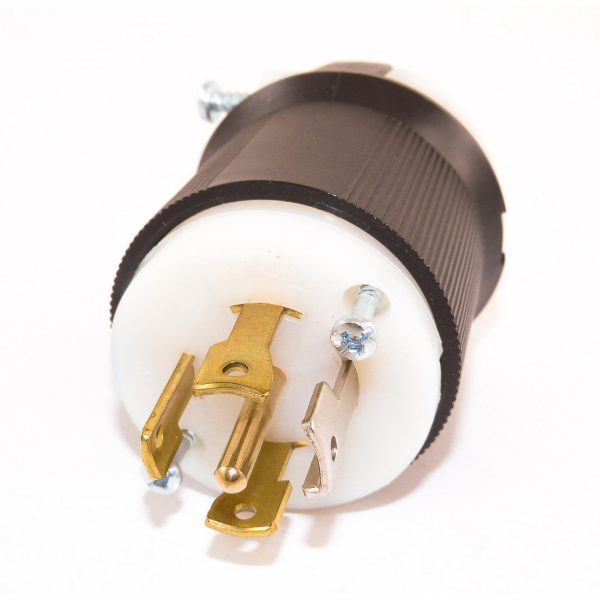

The HBL2811 is a 4-pole 5-wire 3-phase 30A 120/208VAC Y-type Twist-Lock NEMA L21-30R watertight Safety-Shroud Grounding Plug, made of black and white nylon body, brass blades, #10-32 brass Phillips/slotted/Robertson screw terminals and 9 to 29mm cord diameter.

Key Features

• UL 498 listed
• HB or better per UL94/CSA 22.2 No.0.17 Flammability test
• IP20 Moisture resistance rating
• -40 to 75C Operating temperature range
• Ribbed nylon housing provides a secure grip and impact and chemical resistance
• Superior cord grip design protects terminations from excess strain
• Clear, funnel shaped wire entry for ease of termination
• Integral dust shield protects wiring chamber from dust or contaminants
• Product family: Hubbell
• Type: Inline

Technical Specifications

Connector Body Material
Nylon (Polyamide) Body
Connector Color
Black, White
Connector Type
Power Entry
Current Rating
30A
SVHC
To Be Advised
Series
Insulgrip
Voltage Rating VAC
208V
